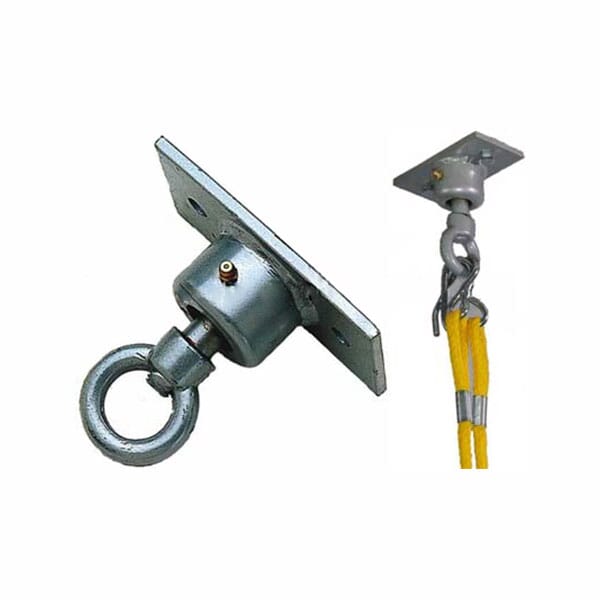

Residential Light Duty Tire Swivel a light-duty swivel, with lubricating ball bearing, for hanging tires on wood beams. It will turn 360 degrees without tangling or wrapping the chain.
Mounting hardware and board installation by customer. For use in residential applications only.
MAINTENANCE CHECKLIST:
All of the following wear points should be checked on a monthly basis:
All of the following wear points should be checked on a monthly basis:
- Check eye bolt for loose nuts or movement. Tighten if necessary.
-
Check eye bolt for wear at the point where it rubs against the safety snap. If wear exists, it should not exceed 30% of the diameter of the eye bolt. If it does, discontinue use immediately and replace the eye bolt. (See figure below).
Shipping & Returns
Shipping & Returns
This product ships directly from the manufacturer, ensuring it arrives straight from the source. Please note, it may be delivered separately from other items in your order.
Specifications
Specifications
Residential Light Duty Tire Swivel Specifications:
-
Grade: Residential
-
Weight Limit: 125 lbs.
-
Base Plate 2.5" Wide x 4.75" Long x 0.238" Thick)
-
2 each mounting holes for hardware up to 3/8" set 3 3/8" from each other (fasteners not included)
