Extra Heavy Duty Tire Swivel for Commercial
Jensen Swing Products | SKU:
E18747
$360.95
Unit price
/
Unavailable
Extra Heavy Duty Tire Swivel for Commercial is backordered and will ship as soon as it is back in stock.
Description
Description

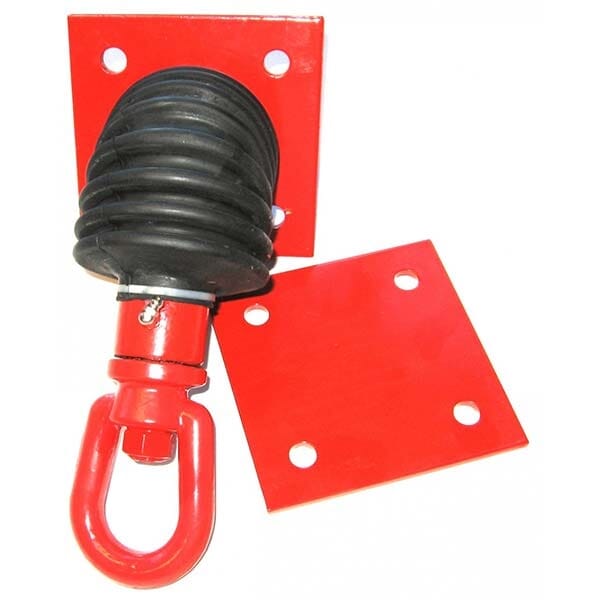

This swivel turns 360 degrees with less tangling or wrapping the chains and has a top plate for added strength. Universal joints are covered with a rubber boot for finger protection. Painted with rust proof enamel in red. It has 2 plates that are 5 ½ ” x 5 1/2” with four ½ ” holes that are 3 5/8” center to center. There is a welded nut securing the swivel to the plate. It hangs down 10 1/2″ from pipe. Nuts and bolts not included. This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner. 10.3 lbs. each. Tensile strength 16000 lbs.
Extra Heavy Duty Tire Swivel Features:
- Turns 360°
- 2 plates that are 5.5"
- Supports 500 lbs.
Mounting hardware and board installation by customer.
MAINTENANCE CHECKLIST:
All of the following wear points should be checked on a monthly basis:
All of the following wear points should be checked on a monthly basis:
- Check eye bolt for loose nuts or movement. Tighten if necessary.
-
Check eye bolt for wear at the point where it rubs against the safety snap. If wear exists, it should not exceed 30% of the diameter of the eye bolt. If it does, discontinue use immediately and replace the eye bolt. (See figure below).
Shipping and Returns
Shipping and Returns
This product is eligible for returns. Please review our Return Guidelines thoroughly before purchasing to ensure it aligns with your needs and expectations.
This product ships directly from the manufacturer, ensuring it arrives straight from the source. Please note, it may be delivered separately from other items in your order.
