Specifications
Specifications

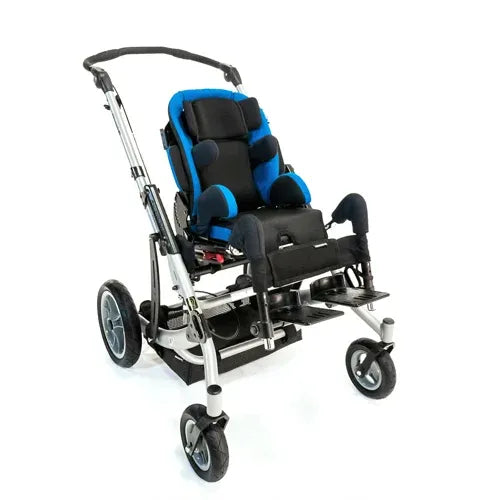

Convaid Trekker Specifications
| Seat Size |
12" Seat width |
14" Seat Width |
| Seat Width |
11.75" | 13.5" |
| Seat Depth Ranges |
5.5" - 12" | 8" - 15" |
| Hip Width Between Hip Guides Without Arm Rests |
5.5" - 11.5" | 6.5" - 14" |
| Seat Width with Accessories |
12" Seat width |
14" Seat Width |
| Trunk Width Between Fixed Laterals | 8.5" - 12" | 10.5" - 14" |
| Trunk Width Between Swing-Away Laterals | 6.5" - 12" | 8.5" - 14" |
| Hip Width Between Hip Guides | 6.5" - 11.5" | 6" - 14" |
| Back Height | 9" - 17" | 12" - 26" |
| Back Angle (Standard) |
80 to 110 degrees | 80 to 110 degrees |
| Back Angle (Optional) | 80 to 170 degrees | 80 to 170 degrees |
| Posterior Tilt Adjustment | 45 degrees | 45 degrees |
| Anterior Tilt Adjustment |
10 degrees | 10 degrees |
| Weight of Seating Module | 10 lbs | 11.5 lbs |
| Weight Capacity | 75 lbs | 110 lbs |
| Seat To Footplate Dimensions |
12" Seat width |
14" Seat Width |
| Fixed 90° With One Piece Footplate | 5.5" - 11.5" | 5.5" - 11.5" |
| Fixed 90° With One Piece Footplate (Flipped) | 3.25" - 9.25" | 3.25" - 9.25" |
| ELR With One Piece Footplate | 4.75" - 10.75" | 6.25" - 12.25" |
| ELR With One Piece Footplate (Flipped) | 2" - 8" | 4.25" - 10.25" |
| ELR With Individual Footplates | 5" - 11" | 7" - 13" |
| ELR With Individual Footplates (Flipped) | 2" - 5" | 4" - 7" |
|
Frame Dimensions |
|
| Folded length |
39" |
| Folded width |
26" |
| Folded height |
13.5" |
| Push Handle Adjustments |
29" - 43" |
| Overall height |
37.5" |
| Overall length |
42.5" |
| Overall width |
26" |
| Weight of frame |
27 lbs |
