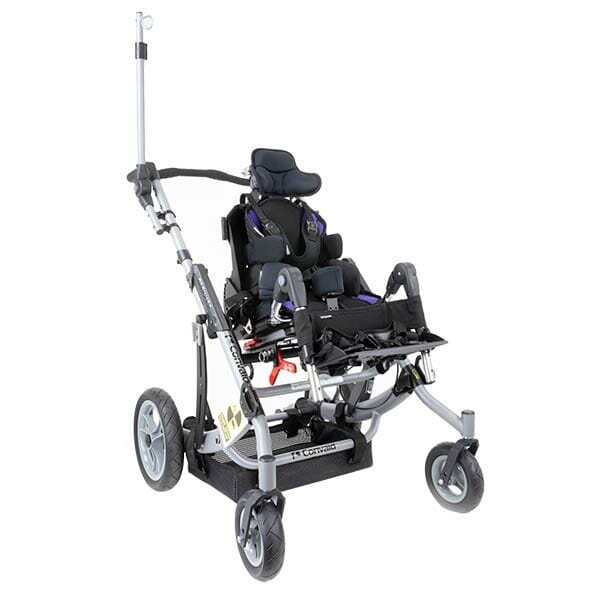

Convaid Trekker Transit

Name: Convaid Trekker Transit
Brand: Convaid
SKU: TrekkerTransit
Price: 2335.50 USD
Availability: InStock

Convaid | SKU: TrekkerTransit

$2,335.50

Lead Time: 6-8 weeks

Description

Proudly made in USA, the new Convaid Trekker Transit is lightweight and compact and has an improved docking interface, making it easy for you to slide the seat and lock it when you need to attach, detach or reverse the seat.

Fold your Trekker frame easily into a compact and lightweight package with or without the seat and use only one hand to unfold. Enjoy the highly versatile seating options offered with new Trekker: Use the Trekker seating module with the R82 High-Low indoor frame or use the R82 Stingray size 1 seat with the Trekker frame, to meet the needs of a child’s Activities of Daily Living.

Highlights of the New Convaid Trekker include:

The easiest docking system in the market
One size Trekker frame TR14 accepts size 12" and 14" wide seat
Compatiable with the R82 Stingray Seat and R82 High-Low Indoor Frame

The Convaid Trekker Transit is known for:

Lightweight and compact fold frame
Variable positioning of tilt and recline
Accepts after-market seating options
180 degree reversible seating
For early intervention through early teenage years

Seat Size	12" Seat width	14" Seat Width
Seat Width	11.75"	13.5"
Seat Depth Ranges	5.5" - 12"	8" - 15"
Hip Width Between Hip Guides Without Arm Rests	5.5" - 11.5"	6.5" - 14"

Seat Width with Accessories	12" Seat width	14" Seat Width
Trunk Width Between Fixed Laterals	8.5" - 12"	10.5" - 14"
Trunk Width Between Swing-Away Laterals	6.5" - 12"	8.5" - 14"
Hip Width Between Hip Guides	6.5" - 11.5"	6" - 14"
Back Height	9" - 17"	12" - 26"
Back Angle (Standard)	80 to 110 degrees	80 to 110 degrees
Back Angle (Optional)	80 to 170 degrees	80 to 170 degrees
Posterior Tilt Adjustment	45 degrees	45 degrees
Anterior Tilt Adjustment	10 degrees	10 degrees
Weight of Seating Module	10 lbs	11.5 lbs
Weight Capacity	75 lbs	110 lbs

Seat To Footplate Dimensions	12" Seat width	14" Seat Width
Fixed 90° With One Piece Footplate	5.5" - 11.5"	5.5" - 11.5"
Fixed 90° With One Piece Footplate (Flipped)	3.25" - 9.25"	3.25" - 9.25"
ELR With One Piece Footplate	4.75" - 10.75"	6.25" - 12.25"
ELR With One Piece Footplate (Flipped)	2" - 8"	4.25" - 10.25"
ELR With Individual Footplates	5" - 11"	7" - 13"
ELR With Individual Footplates (Flipped)	2" - 5"	4" - 7"

Frame Dimensions
Folded length	39"
Folded width	26"
Folded height	13.5"
Push Handle Adjustments	29" - 43"
Overall height	37.5"
Overall length	42.5"
Overall width	26"
Weight of frame	27 lbs
